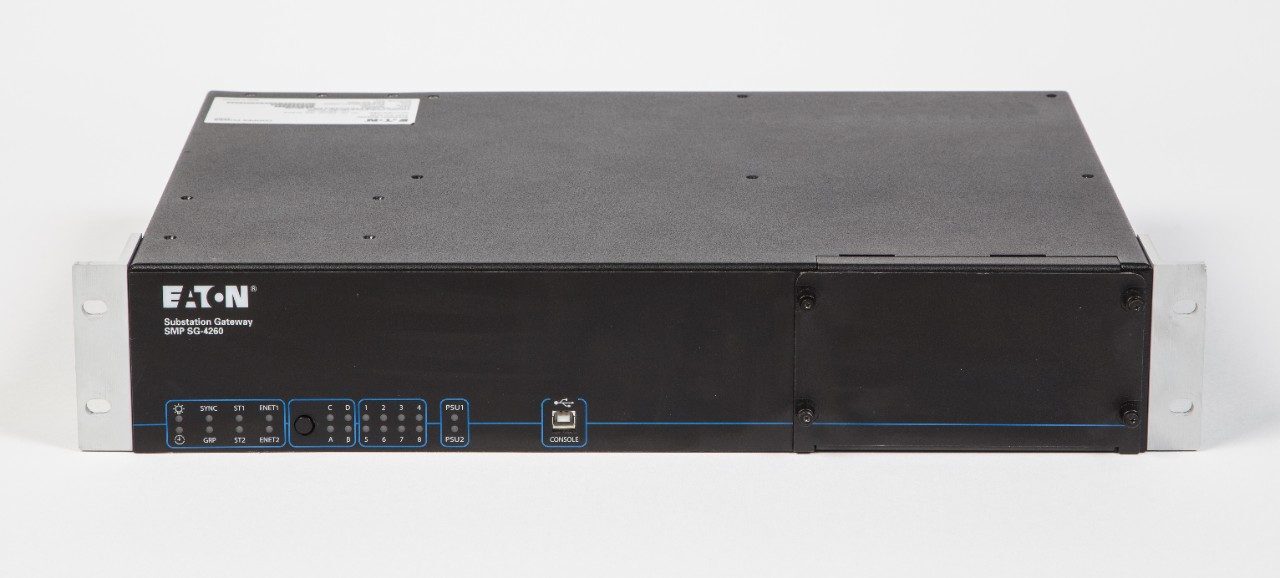

Core Features

• Substation controller
• Data concentrator and protocol translator (popular protocols: IEC 61850 and GOOSE, DNP3, Modbus, IEC 60870-5-101/104, OPC UA)
• Cybersecure
• Substation-grade hardware
• Complete redundancy scheme: systems, networks (PRP/HSR), links, IEDs, power supplies
• Interoperable, flexible and scalable
• Configuration and commissioning tools

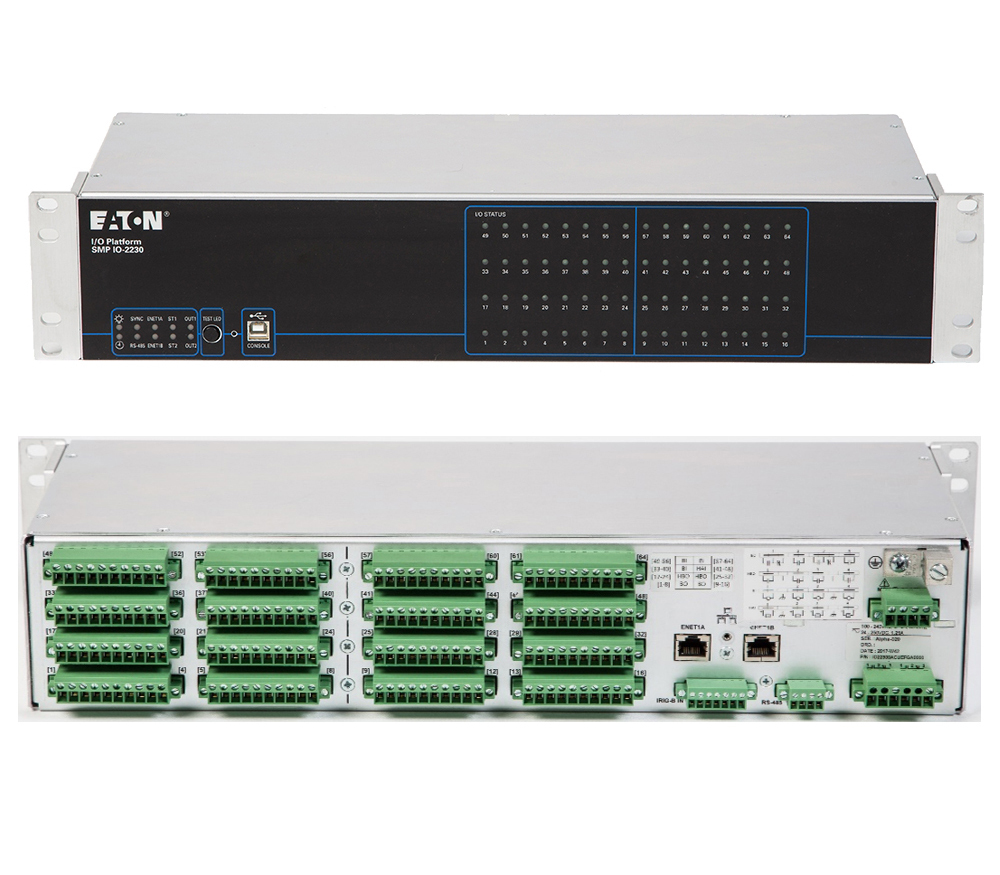

Eaton’s substation-grade SMP distributed I/O platforms of the SMP IO-2000 series are specially designed to meet the requirements for distributed I/O in modern utility substation automation systems. This family of products is Linux-based and includes the evolutive SMP IO-2230 platform which supports binary inputs, binary outputs and analog inputs and the SMP IO-2330 system, with four models pre-mapped to specific I/O configurations. All models communicate over serial RS-485 or TCP/IP using fibre or copper Ethernet and can be integrated with the SMP Substation automation platform or used as standalone I/O modules that connect directly to a master station.

Core features

• Seamless networking facilitated through the SMP distributed I/O’s Ethernet and RS-485 ports, and by relying on the industry-standard DNP3 protocol
• Support of IEC 61850 and IEC 61850 GOOSE messaging
• Integrated micro PLC and full integration with the SMP Substation automation platform management application
• Comply with industry cybersecurity standards (certified under UL 2900-1 for firmware version 2.0)
• The SMP IO-2230 platform is Linux-based and designed for growth with up to 64 I/Os
• The SMP IO-2330 system is Linux-based, compact, rack- and wall-mountable and offers four models with predefined I/O mappings

Eaton’s new SMP™DA-3050 is a powerful automation platform that combines multiple functions into a single product to provide secure and reliable data acquisition and management. Its compact and versatile design makes it an excellent edge intelligence node for distribution utilities. It is available in four (4) models.

 Common key characteristics of all models (controller-based features):

Compact shape, can be installed directly in relay enclosure or cabinet
Rack-, DIN rail- and wall-mountable
Power supply: Nominal voltages: 24, 48 Vdc
Operate over a broad temperature range (-40 °F to +167 °F, -40 °C to 75 °C)
2 serial ports: 2-wire RS 232/485 support (multidrop*)
3 Ethernet ports (1 SFP-based metallic or optical, 2 metallic behind switch)
1 x 24-48 Vdc DI (follows input supply voltage)
1 x +/- 48 Vdc AI
2 x Form C auxiliary relays, available for system applications or alarms
Trip/Close pair, latch, pulse, pulse pair and pulse train support for binary outputs
Standard protocols (IEC 61850 Ed.2*, IEC 61850 GOOSE, IEEE 1815-2012 DNP3, MODBUS, IEC 60870-5-101*/104, OPC UA*)
Optional satellite-synchronized clock (GNSS)* with access to GPS, GLONASS, Galileo, BeiDou and QZSS constellations (not field-upgradable)
Optional cellular modem*: CAT-M1 / NB IoT with Worldwide coverage and 3FF Micro-SIM card (Interchangeable)
IRIG-B* input/output (for time synchronization and distribution)
Web-based and local* HMI for alarm management and much more

(*) Features yet to be released
